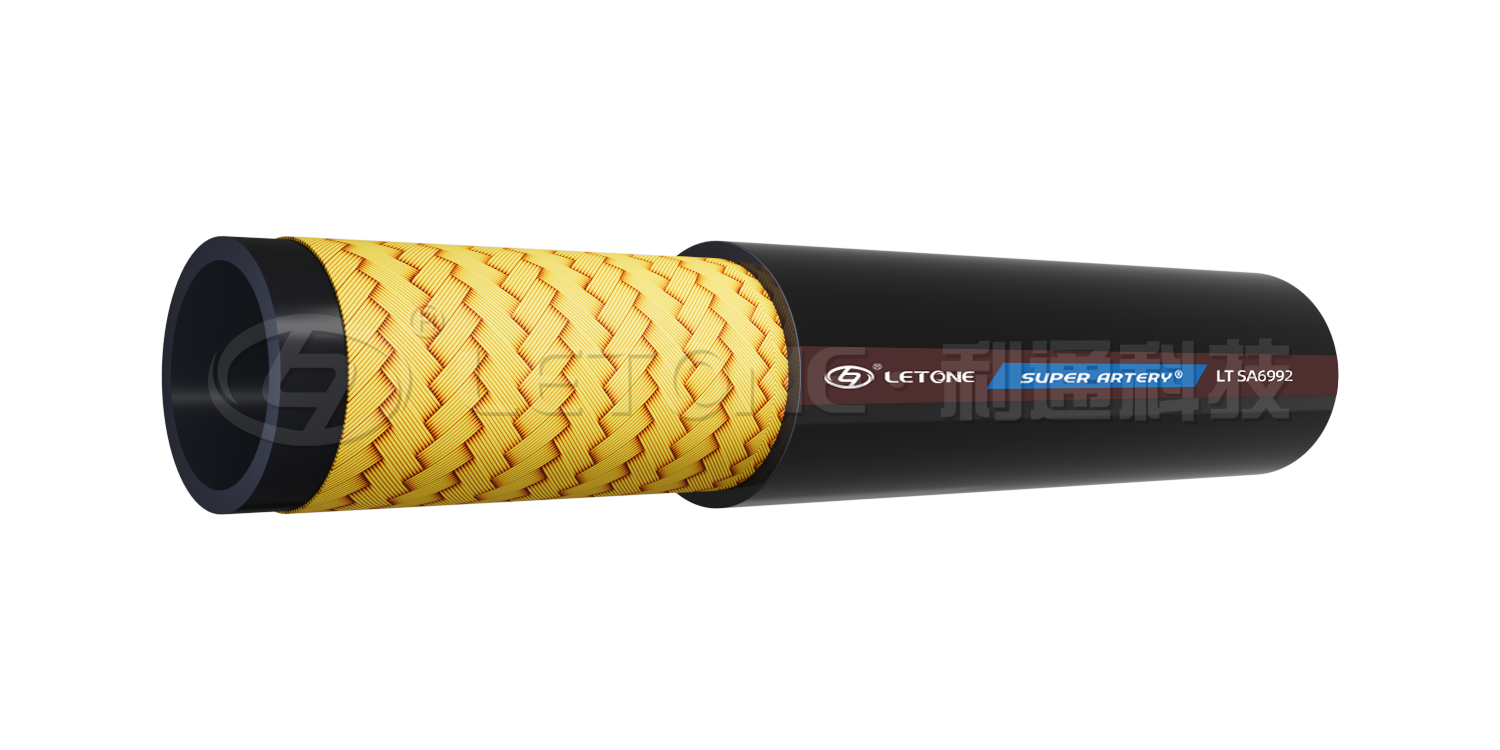

LT SA6992
Super Artery EXCEEDS ISO18752-AC/BC/CC
Product application:suitable for large construction machinery such as excavators or demanding environments.

Inner rubber layer:Nitrile or neoprene synthetic rubber, suitable for biodegradable hydraulic oil
Reinforcement layer:one or two layers of steel wire weaving (1/4" ‒3/8"), pulse ≥300,000 times four layers of steel wire winding (1/2"‒2"), pulse ≥1 million times
Outer layer:standard: no-skive abrasion, weather resistant synthetic rubber.
              AR cover: no-skive, highly abrasion, weather resistant synthetic rubber.
              SAR cover: super abrasion, weather resistant UHMWPE.
Temperature range:-40℃ to +100℃ (-40℉ to +212℉) -40℃ to +121℃ (-40℉ to +250℉)
Low bending:the bending radius is reduced by 30% compared with the ISO18752 standard; it is reduced by 38% compared with the SAE standard
High pressure:36% exceeding SAE standard
Super Artery EXCEEDS  ISO18752-AC/BC/CC
Parameter
model ISO18752 Inner diameter of hose (mm) Outer diameter of hose (mm) Working pressure (MPa) Minimum burst pressure (MPa) Minimum bending radius (mm) Weight (kg/m) Connector series
6992standard tube 6992 wear-resistant tube AARR 6992 super wear-resistant tube
SA6992-1/4"-1 AC AC AC 6.3 13.4 25 100 40 0.219 31series
SA6992-5/16"-1 AC AC AC 8.0 15.2 25 100 55 0.277 31series
SA6992-3/8"-1 AC AC AC 10.0 17.4 21 84 65 0.33 31series
SA6992-1/2"-4 AC AC AC 13.0 22.2 25 100 110 0.658 31series
SA6992-5/8"-4 AC AC AC 16.0 25.4 25 100 130 0.771 31series
SA6992-3/4"-4 BC CC CC 19.0 28.4 25 100 160 0.939 31series
SA6992-1"-4 BC CC CC 25.0 35.3 21 84 210 1.247 31series
SA6992-1 1/4"-4 CC CC CC 32.0 43.5 21 84 250 1.874 31series
SA6992-1 1/2"-4 CC CC CC 38.0 49.50 17.5 70 300 2.127 31series
SA6992-2"-4 CC CC CC 51.0 62.5 17.5 70 610 2.848 31series

Note: The actual parameters are subject to the final atlas

无标题文档
Product Description

Note style

Product Features

Low bend:The average minimum bending radius of the entire series of hoses is 34% lower than the ISO18752 Class C standard (Note: The Class C standard refers to the compact category in the ISO18752 standard), which is easy to install and save equipment space;

High pressure:All pressures meet/exceed ISO18752 AC/BC/CC/DC standards;

 Life:Powerful pulse performance, the pulse times of the entire series of hoses are more than 1 million times, which greatly extends the service life of the hose。

Comparison of Super Hercules Low Bend Series Hose and ISO18752 Standard Parameters

grade

ISO18752 standard temperature

ISO18752 standard impulse pressure

ISO18752 standard minimum pulse

super Hercules minimum pulse

AC

100℃(212℉)

133%

200,000 times

1 million times

BC

100℃(212℉)

133%

500,000 times

1 million times

CC

120℃(250℉)

133%

500,000 times

1 million times

DC

120℃(250℉)

133%

1 million times

1 million times

Model Selection

The convenience of the Super Hercules low bending series is mainly reflected in three aspects:

1、There is obvious pressure classification, easy to find the model;

Super Hercules Low Bend Series Hose Pressure Selection Table

Inner diameter of hose Hose model

1/4”

5/16”

3/8”

1/2”

5/8”

3/4”

1”

1 1/4”

1 1/2”

2”

LTSA6991

18

15

14

14

14

9

8

LTSA6992

25

25

25

25

25

21

21

17.5

17.5

LTSA5991

28

28

28

28

28

28

28

LTSA5992

40

35

35

35

35

35

35

35

35

35

LTSA5993

45

45

45

45

42

42

42

42

42

42

2、Only need to select the corresponding model from the three connector series; Note:31 is hose connector 31 series; 41 is hose connector 41 series; 61 is hose connector 61 series。

Super Hercules Low Bend Series Connector Series Selection Table

Inner diameter of hose Hose model

1/4”

5/16”

3/8”

1/2”

5/8”

3/4”

1”

1 1/4”

1 1/2”

2”

LTSA6991

31

31

31

31

31

31

31

LTSA6992

31

31

31

31

31

31

31

31

31

LTSA5991

31

31

41

41

41

41

41

LTSA5992

31

31

31

41

41

41

41

41

61

61

LTSA5993

41

41

41

41

41

41

41

61

61

61

3、Adopt one-piece non-stripping glue joints (31 and 41 series) and split joints (61 series)) Note: The integrated non-stripping glue and split joints are matched with Litong self-developed hydrogenated nitrile seals, which is infinitely close to the sealing goal of zero leakage.。

One-piece non-stripping glue joint (31 and 41 series)

  • 1)Eliminates hose crimping problems caused by stripped or too short hoses;
  • 2)Save manpower, easy to operate;
  • 3)One connector is suitable for multiple hoses;
  • 4)Clean and beautiful after crimping。

Split connector (61 series)

  • 1)More flexibility, more choices of joints and sleeves;
  • 2)Joints and sleeves can be purchased separately according to existing inventory。
Customized Outer Layer Of Hose

Based on EN853: 2015, the outer layer of the Super Hercules low bending hose series is reciprocated at a frequency of 1.25HZ under 25N gravity according to the method specified in the GB/T 12721-2007/ ISO6945: 1991 inspection standard. In the abrasion test, the quality loss of the outer layer material under 2000 cycles is compared, and the outer layer of the Super Hercules low-bending hose is divided into the following three types:

  • Standard outer layer:Oil-resistant, abrasion-resistant and weather-resistant synthetic rubber;
  • Abrasion Resistance (AR) outer layer:The wear-resistant quality loss is 1/7 of that of the standard tube outer layer, that is, its wear resistance coefficient is 7 times that of the standard outer layer. Wear-resistant AR outer hose is suitable for relatively harsh environment;
  • Super abrasion resistance SAR (Super >Abrasion Resistance>) outer layer:Using UHMWPE outer layer, the quality loss of outer layer material under 2000 cycles is 0. Super wear-resistant SAR outer hose is suitable for extremely harsh environment。
