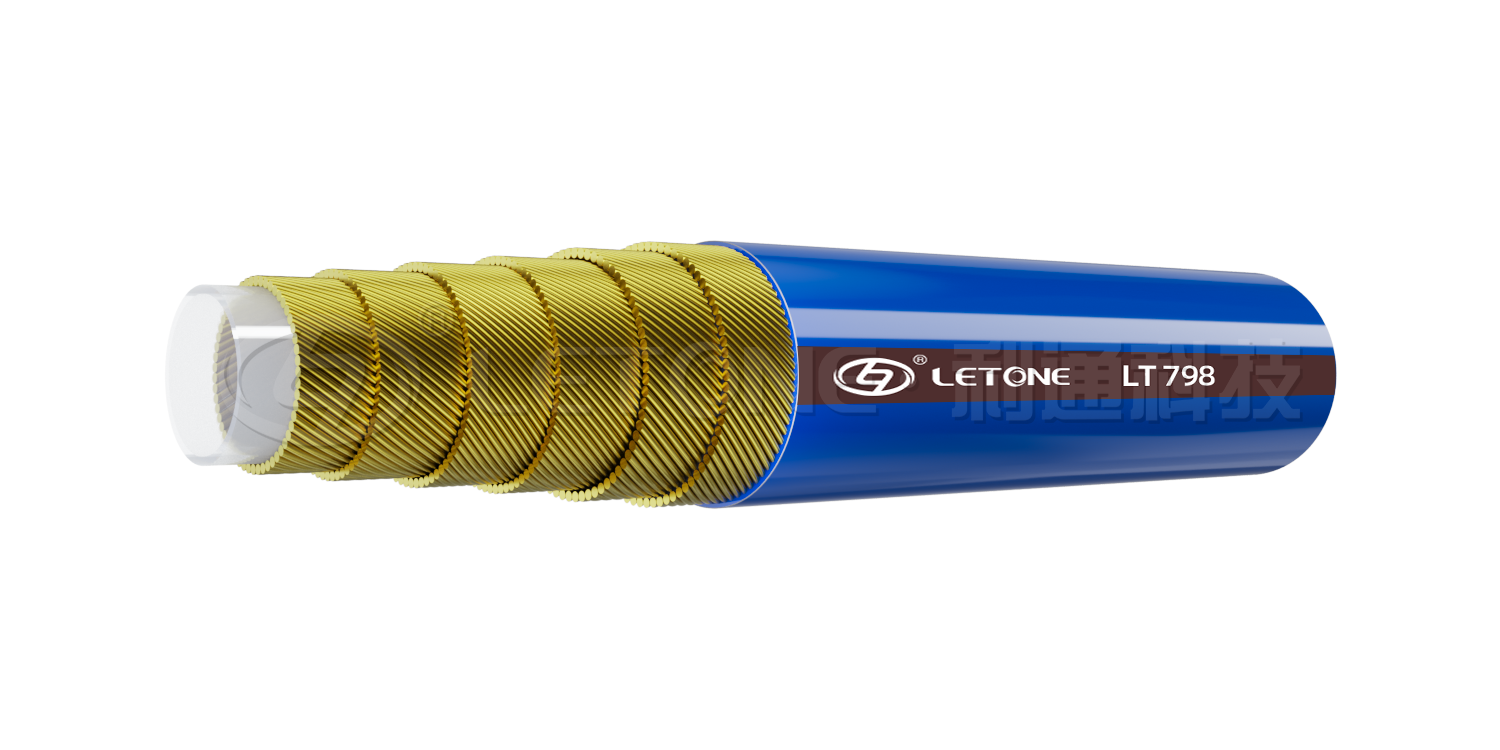

LT798
29000PSI ultra high pressure resin hose
Scope of application :suitable for conveying media such as water and hydraulic oil under high pressure, widely used in high-pressure cleaning and other industries

Pressure range:2000bar (29000psi)
Inner rubber layer: Nylon
Reinforcement layer:four or six layers of high-strength super-flexible steel wire winding
Outer layer:black or colored polyurethane
Temperature range: -40℃ to +100℃ (-40℉ to +212℉)
29000PSI ultra high pressure resin hose
Parameter
Hose inner diameter I.D. Outer diameter of hose O.D. Working pressure W.P. Burst pressure W.P. Minimum bending radius MIN.B.P. Reference weight W.T.
Dash In. mm mm MPa psi MPa psi mm g/m
-3 3/16 4.8 14.5 200 29000 600 87000 220 600
-4 1/4 6.3 16.4 200 29000 600 87000 250 800
-6 3/8 9.5 21.2 200 29000 600 87000 300 1300
-8 1/2 12.7 25 200 29000 600 87000 320 1600

Note: The actual parameters are subject to the final atlas
