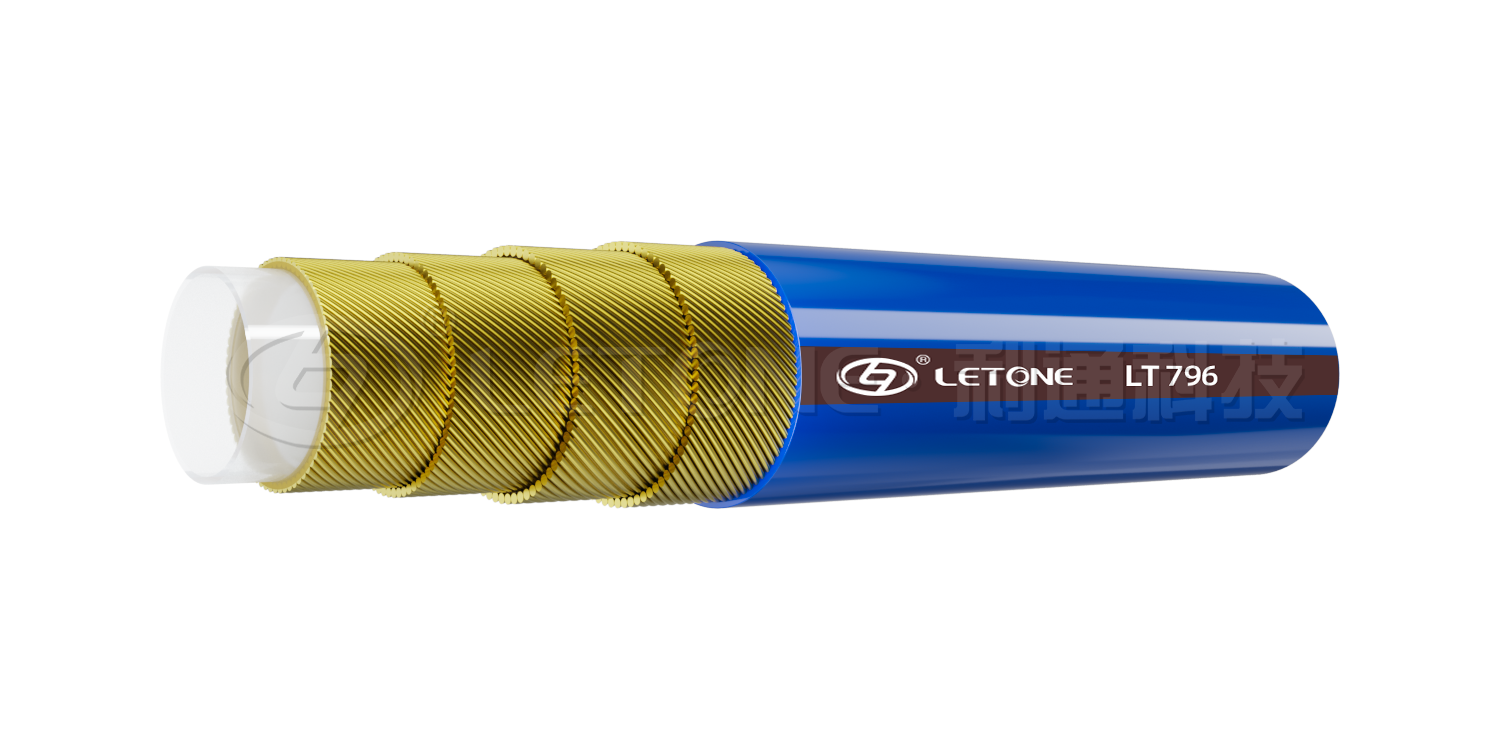

LT796
14500PSI ultra high pressure resin hose
Scope of application : suitable for conveying media such as water and hydraulic oil under high pressure, widely used in high-pressure cleaning and other industries

Pressure range:1000bar (14500psi)
Inner rubber layer:Nylon
Reinforcement layer:four layers of high-strength super-flexible steel wire wound
Outer layer:black or colored polyurethane
Temperature range:-40℃ to +100℃ (-40℉ to +212℉)
14500PSI ultra high pressure resin hose
Parameter
Hose inner diameter I.D. Outer diameter of hose O.D. Working pressure W.P. Burst pressure W.P. Minimum bending radius MIN.B.P. Reference weight W.T.
Dash In. mm mm MPa psi MPa psi mm g/m
-4 1/4 6.3 13.5 100 14500 300 43500 110 310
-5 5/16 7.9 15 100 14500 300 43500 130 350
-6 3/8 9.5 18.5 100 14500 300 43500 160 500
-8 1/2 12.7 22 100 14500 300 43500 200 640

Note: The actual parameters are subject to the final atlas
