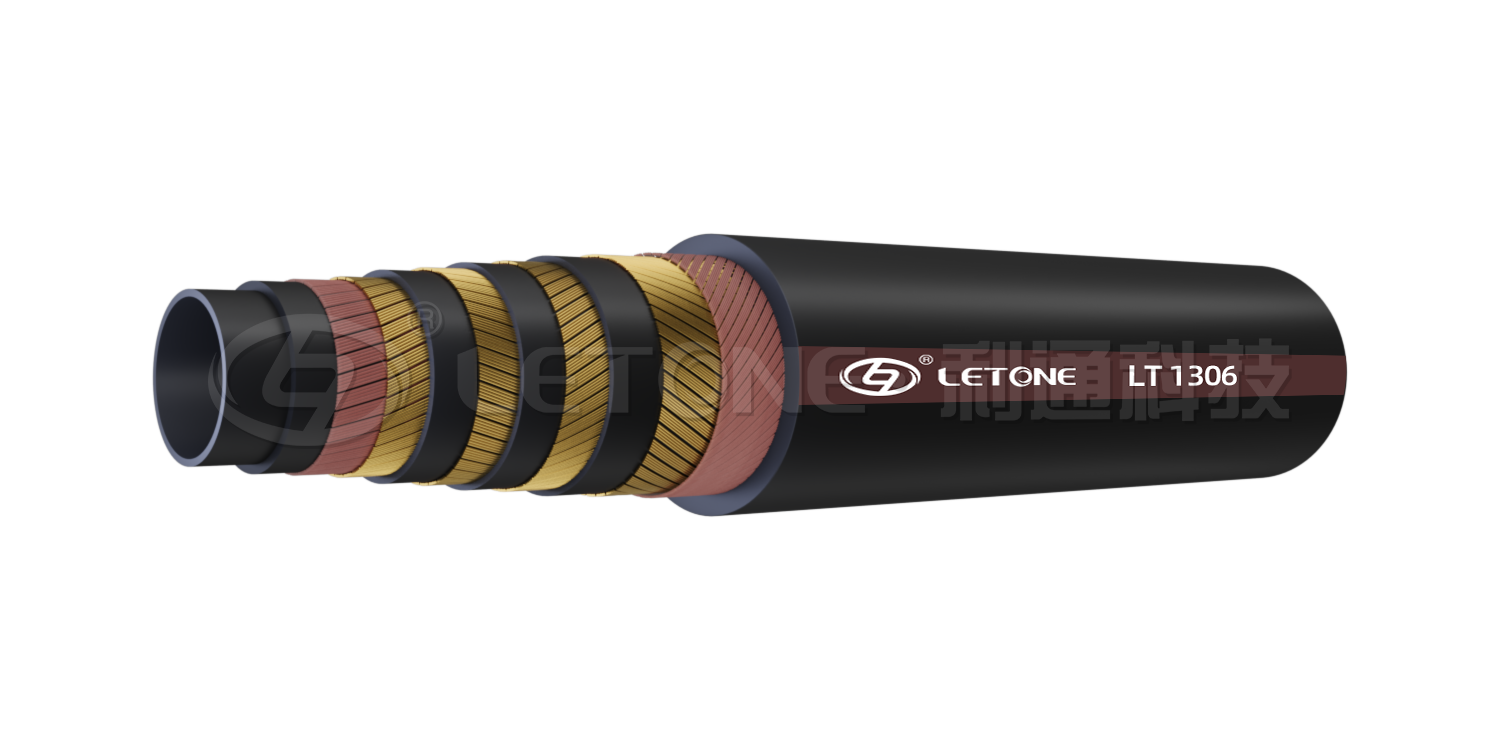

LT1306
GB/T 27571 UPE SUPER ABRASION RESISTANT CONCRETE HOSE
Application: Apply to construction machinery like pump truck to delivery concretes. Its service life is several times more than average products in the market, and the high saturation characteristic of UPE means that this product will not react with the alkaline substance in the concrete.

Inner Tube:UPE and NR & SBR synthetic rubber
Reinforcement:2~4 plies of sprialed steel cord
Outer Layer:black NR & SBR synthetic rubber (UPE layer is available)
Temperature Range:-30°C~+82°C(-22℉~+180℉)
GB/T 27571 UPE SUPER ABRASION RESISTANT CONCRETE HOSE
Parameter
I.D O.D W.P Min.B.P Min.B.R W.T
in mm in mm psi psi mm kg/m
2 51 2.80 71 1250 3750 450 2.85
2.5 64 3.35 85 1250 3750 550 3.70
3 76 3.62 103 1250 3750 620 5.25
3.15 80 4.25 108 1250 3750 650 6.03
3.5 89 4.53 115 1250 3750 700 6.83
5 127 6.30 160 1250 3750 1050 11.00

Note: The actual parameters are subject to the final atlas
